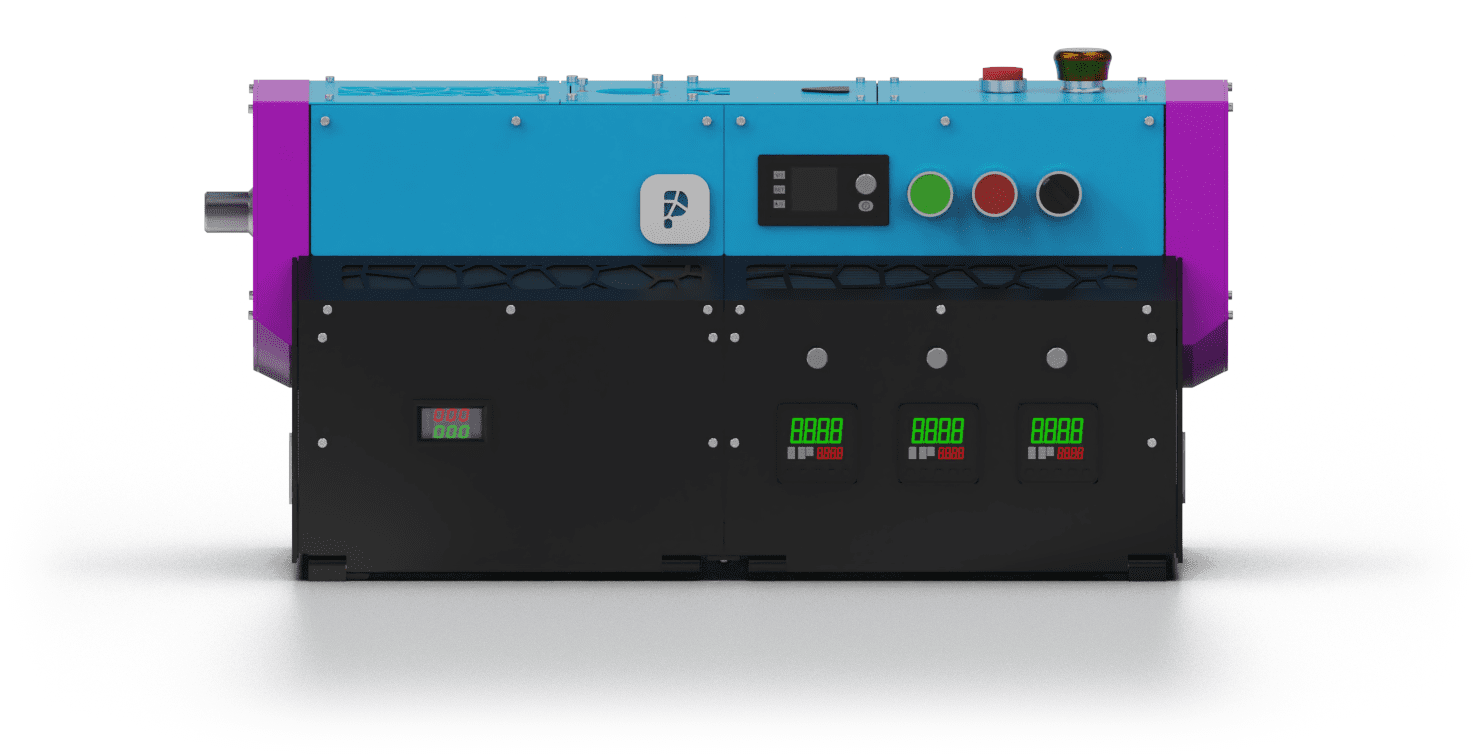

Polystruder XR PRO - Filament Extruder for 3D printing

Advanced filament maker with independent 3 melting zones.

Coming soon

poly

struder

XR

PRO

The heart of the Polystruder PRO filament maker system with advanced extrusion features.

250C maximum extrusion temperature. Additionally, 450C high temperature model option available.
Swappable, multiple types of extrusion screws and nozzles made from super strength carbon steel, particularly suitable for different material types and situations.
0.1 kg to 1.5 kg per hour max extrusion capacity with 700gr per hour optimal filament extrusion speed.
60Nm torque, 25RPM poweful extrusion motor with hardened steel planetary gearbox.
3 independent heating zones with variable speed 3 zone barrel cooling fans for optimum temperature control.
250W nominal power consumption with 550W max power limit.
2 always on system cooling fans significantly extends filament extrusion sessions.
Compatible with any filament maker system.

0 kg/hr

max extrusion speed

0

independent heating zones

0 W

nominal power consumption

Please note that all the hardware and software specifications above are based on current prototype status and subject to change during development phase.
250W power consumption is the nominal value when heater temperatures are stable during standard extrusion process. During initial heating up, power consumption might be 2 to 3 times higher until heater temperatures stabilizes.
